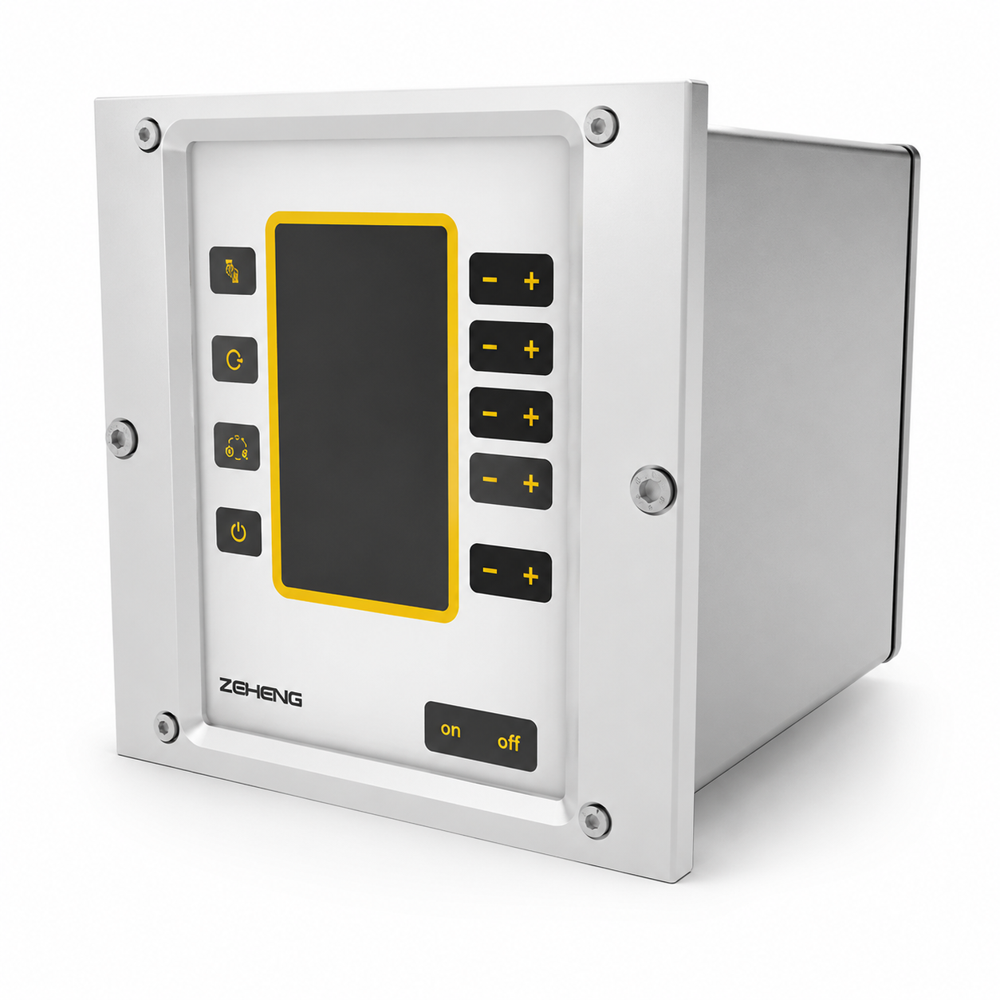

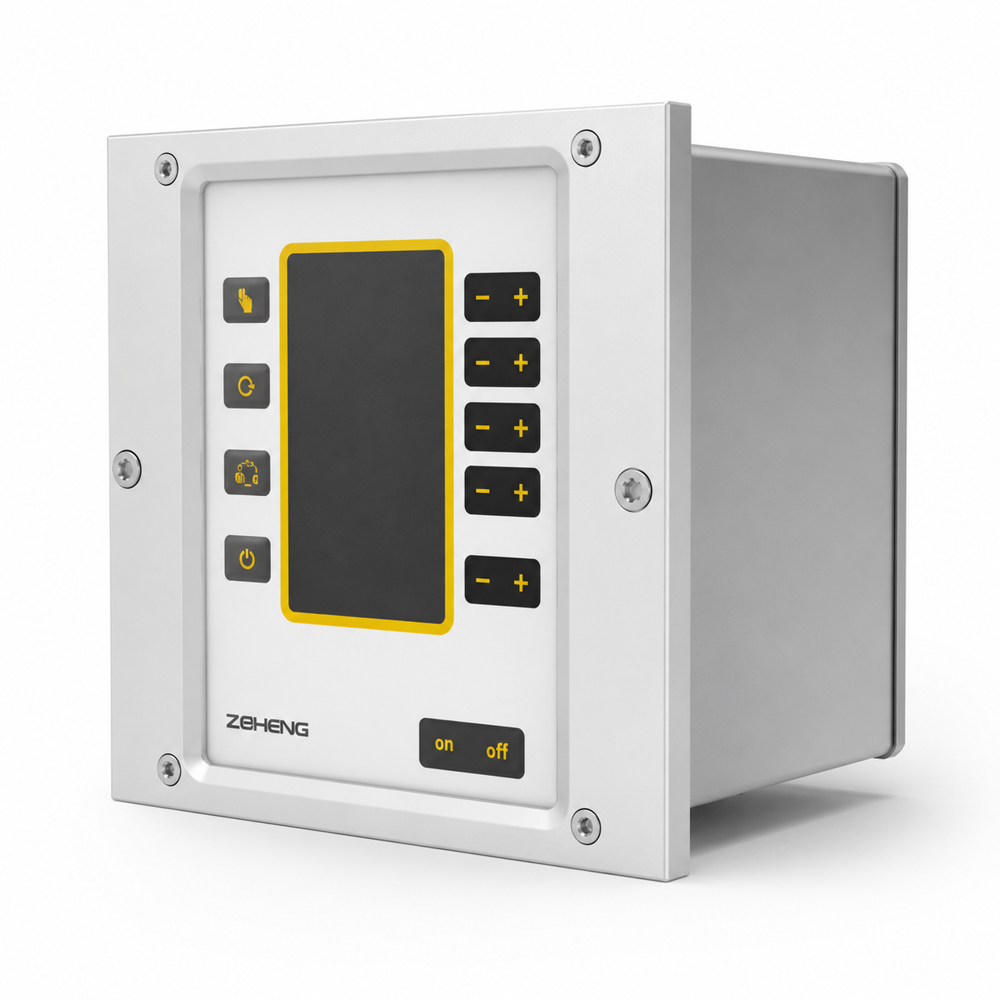

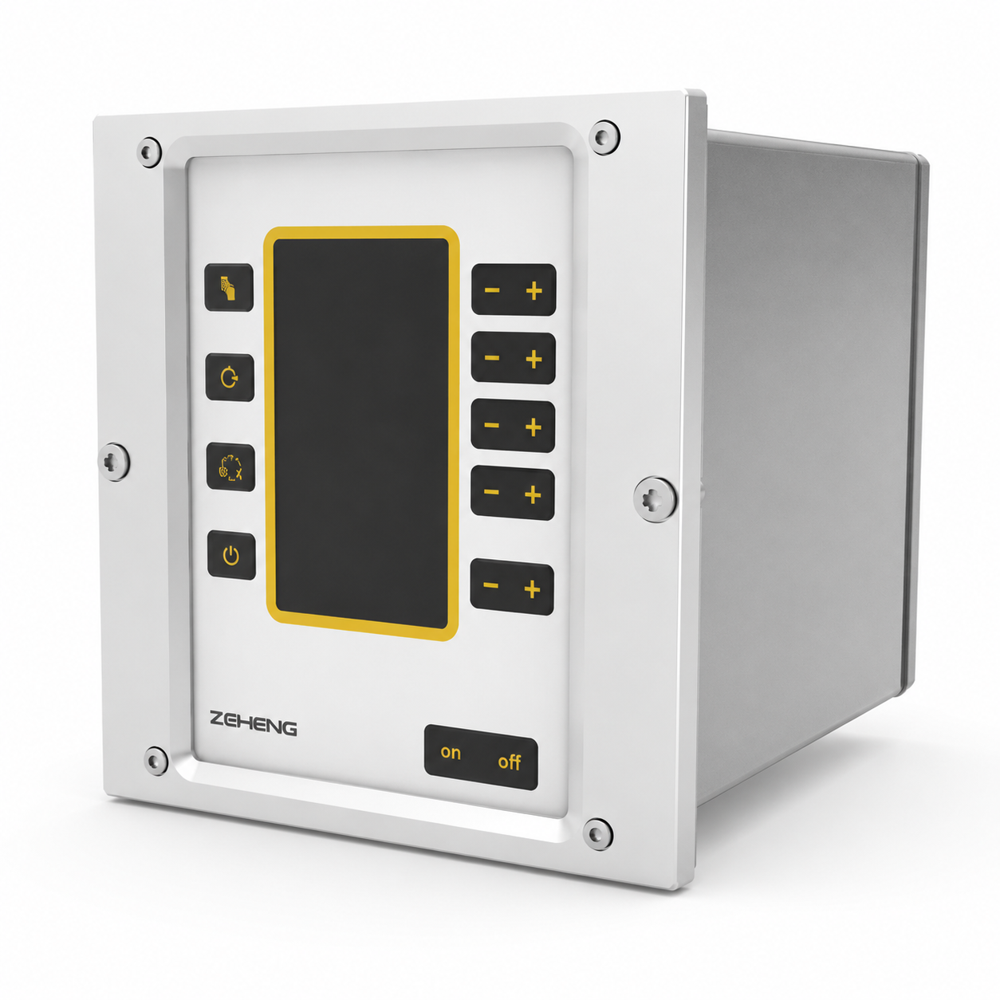

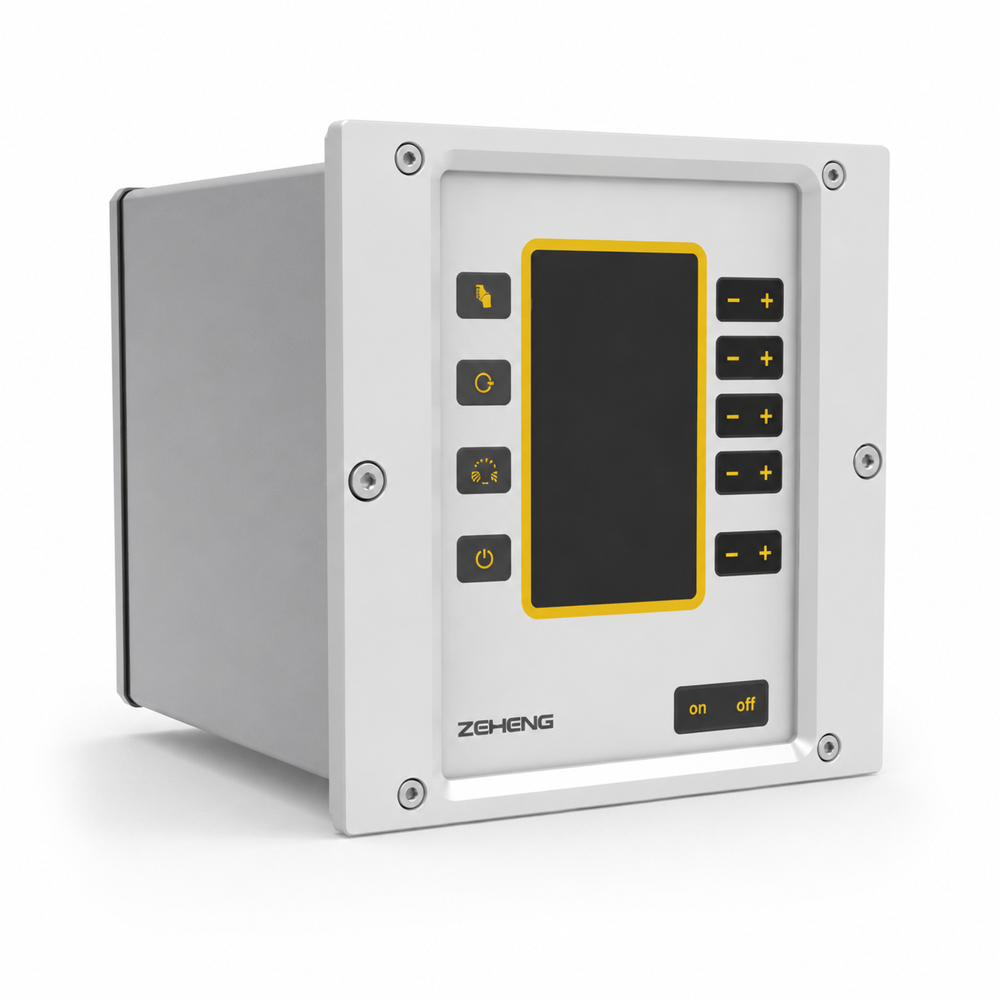

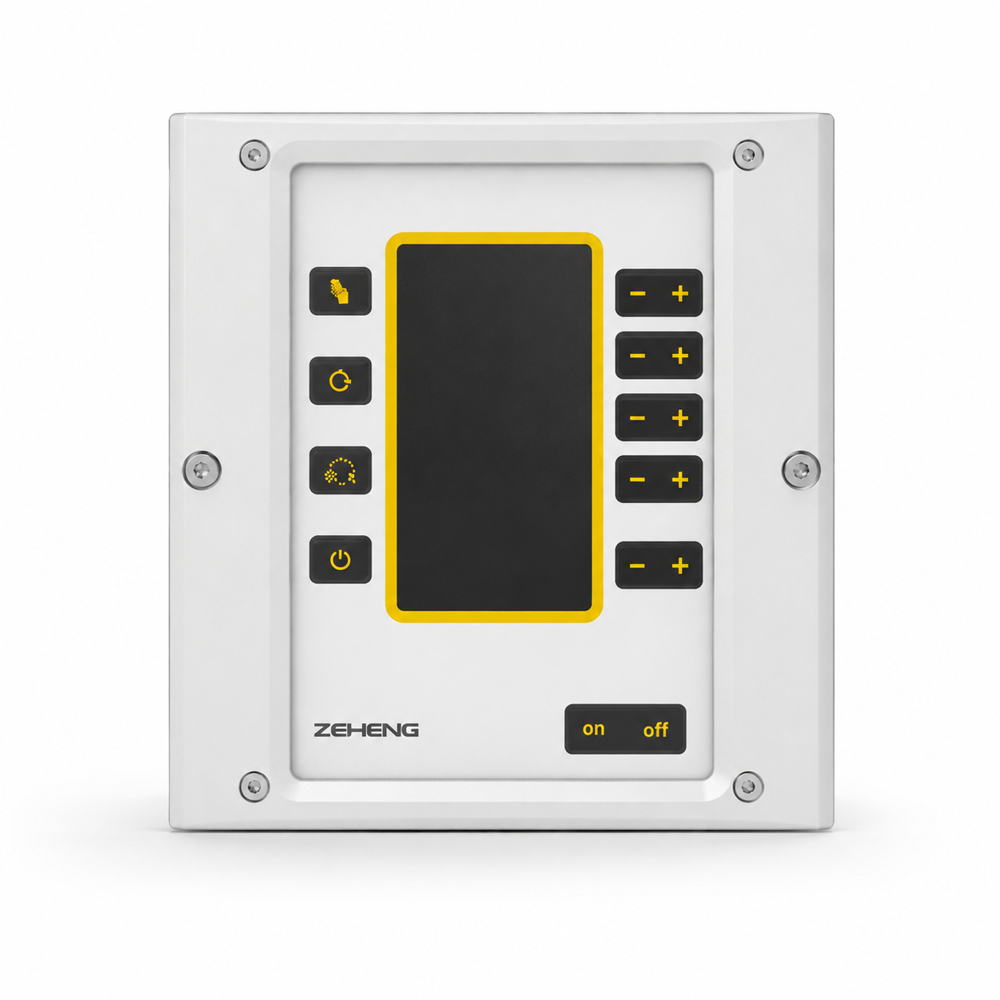

About Powder Coating Spray Gun Controller
The AGC01 controller, is smart and designed for automatic powder gun.
It handles auto-cleaning and parameter storage, with an easy interface for one-click gun control & para-meter setting. It also supports remote control & system customization.
Intelligent Control
- One-click start/stop gun operation & parameter setting.
- Real-time feedback on production conditions, Timely production line alerts
- Remote control & communication for easy monitoring.
- Supports personalized system customization.
Convenient Operation
- Directly view and modify coating parameters,storage for N programs.
- Individually or integrated into the DC50 Deepcontrol system.
- Interconnect with various new and old control systems,integrated into different production lines.
Diverse Programs
- Intelligently adjusts powder parameters (metallic, resin, enamel) to suit different coating .
- One controller manages auto, manual, and enamel guns.
- Offers three preset coating programs (flat, complex, re-coating) and two powder pump/air modes (Venturi, dense phase) for diverse needs.
Technical Parameters
- Dimensions: 173mm*250mm*177mm
- Frequency: 50-60Hz
- Input Pressure: 5.5bar, 6.0bar
- Minimum Input Pressure: 5.5bar
- Standard Input Voltage: 100-240VAC
- Standard Output Voltage: 12V
The AGC01 can be connected via the KS50 electrostatic powder coating control system, thereby opening up a whole new range of options.
- Application: All critical spraying parameters can be clearly viewed and directly modified for control on the intelligent device.
- Production Management: When connected to the KS50 system, coating process production data can be retrieved at any time. Maintenance schedules can be easily viewed with a single click.
- Settings: Can be used as an independent control device or in combination with other control devices.
- Service: Direct access to the user manual corresponding to the system component.
Equipment Features
- The digital valve control technology ensures the accurate powder output and the accurate repetition of the spraying program.
- Control voltage, current, powder output, and total gas volume.
- Unique powder type and gas supply mode settings.
- Three preset programs (flat parts, complex parts and re-spray parts)
- The precision current control technology delivers ultra-precise current regulation (below 10A) without overcharging the powder.
- Supports 30 programmable and stored programs, with expandable functionality when connected to KS50.
- Automatic cleaning function for the pipe.
- Control and monitor all statuses of the electrostatic powder spray gun, including the following functions: on/off control, current adjustment control, voltage adjustment control, control and setting of total air volume, control and setting of powder output , setting of electrode needle cleaning air, digital valve control, precise current control technology provides accurate current control (below 10A) without overcharging the powder, memory capable of storing 30 sets of programs expandable upon connection to KS50, each set can memorize powder output, total air volume, electrode cleaning air, high voltage and current, etc., and a self-diagnostic system.
Advanced Digital Control for Industrial CoatingThe AGC01 spray gun controller stands at the forefront of automation in coating processes. It provides precise timing, programmable settings, and seamless integration with existing systems. The intuitive LED digital display ensures effortless monitoring and configuration, while compatibility with different sensor inputs broadens its range of industrial applications.
Robust Construction and Versatile InstallationManufactured with industrial-grade ABS and high-quality electronic components, the AGC01 is built for durability. It supports both wall and panel mounting, allowing for flexible installation in varied environments. Enhanced protection features, including overload and short circuit safeguards, guarantee reliable operation even in demanding conditions.
FAQ's of AGC01 spray gun controller:
Q: How does the AGC01 spray gun controller interface with different sensors?
A: The AGC01 spray gun controller is compatible with both NPN and PNP sensors, supporting optical or proximity sensor inputs. This allows users to select the sensor best suited for their operational environment, ensuring accurate, sensor-based spray activation.
Q: What are the benefits of programmable spray time and machine speed?
A: Programmable spray time (1-99 seconds) and machine speed (400-1200 mm/min) enable users to customize the coating process for different materials and requirements. This results in optimized paint transfer, reduced waste, and consistent coating quality across varied production lines.
Q: Where can the AGC01 be mounted for optimal use?
A: The AGC01 is designed for versatile installation and can be mounted on a wall or directly onto a control panel. This flexibility makes it suitable for integration in diverse industrial setups, both new and existing.
Q: What types of spray guns are compatible with the AGC01 controller?
A: This controller works seamlessly with both solenoid and pneumatic spray guns, broadening its application in industries that require varied coating tools for different liquid chemicals, paints, or lacquers.
Q: How does the AGC01 enhance the industrial coating process?
A: The controller enables automated, programmable control of the spray gun, improving process efficiency and consistency while minimizing manual intervention. Its sensor-based activation ensures accurate coating only when the product is in place, reducing errors and material wastage.
Q: When should the manual (test) mode be used?
A: The manual (test) mode is ideal during setup or maintenance, allowing operators to verify system functionality and calibration without engaging the automatic cycle. This assists in troubleshooting and assures readiness for production use.
