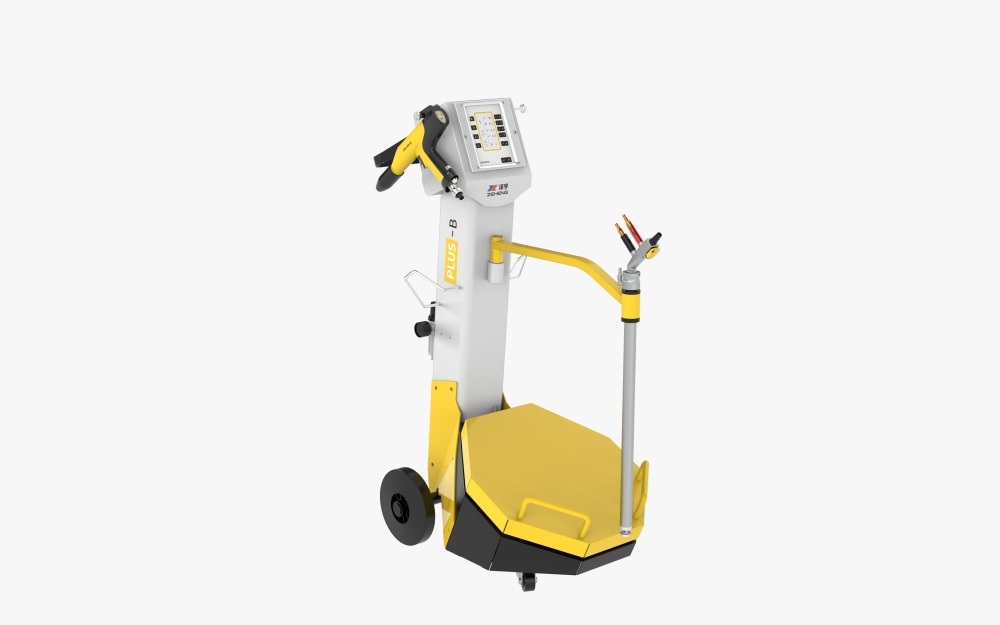

Plus- B (Manual Powder Coating Gun PKg)

Plus- B (Manual Powder Coating Gun PKg) Price And Quantity

• Minimum Order Quantity 1 Unit

Plus- B (Manual Powder Coating Gun PKg) Product Specifications

• Coating Head Interchangeable Nozzle
• Feeding Type Suction (Venturi)
• Material Engineering Plastic Body with Metal Nozzle
• Coating Transfer Method Electrostatic
• Power Consumption Approx. 40-60 W
• Machine Speed Manual, Operator Dependent
• Feature Lightweight, ergonomic design, easy to maintain
• Max. Coating Area Up to 2 m2 per cycle (depends on part size & operator skill)
• Coating Type Electrostatic Powder Coating
• Color Yellow & Black (Gun)
• Power Requirement 220V Single Phase, 50/60 Hz
• Drive Type Manual
• Automatic No
• Coating Format Manual Handheld Spray
• Coating Speed Up to 100 g/min (depending on powder type and air pressure)
• Dimension (L*W*H) Control Unit: Approx. 470 x 150 x 250 mm
• Type Handheld Spray Gun
• Humidification System Not Included
• Coating Width Adjustable by Nozzle
• General Use Manual Powder Coating Application
• Control System Analog Controls
• Coating Material Powder Coating (Polyester, Epoxy, Hybrid, etc.)
• Product Type Manual Powder Coating Gun
• Power Source Electric (Control Unit)
• Weight (kg) Approx. 0.7 to 1.2 kg (gun only)
• Voltage 220 V AC (Control Unit)
• Computerized No

• Ambient Operating Temperature 5C to 40C
• Maximum Output Voltage 0-100 kV, adjustable
• Cable Length 3 meters standard
• Compatibility Suitable for a wide range of standard powder coatings
• Powder Hopper Capacity Approx. 500 g standard hopper
• Included Accessories Powder hose, cleaning brushes, various nozzles
• Cleaning Method Tool-free disassembly for rapid cleaning
• Control Box Weight Approx. 5.5 kg
• Nozzle Type Flat spray/round spray (interchangeable)
• Air Pressure Requirement 4-6 bar (57-87 psi)
• Gun Trigger Type Mechanical
• Maximum Output Current Up to 100 A
