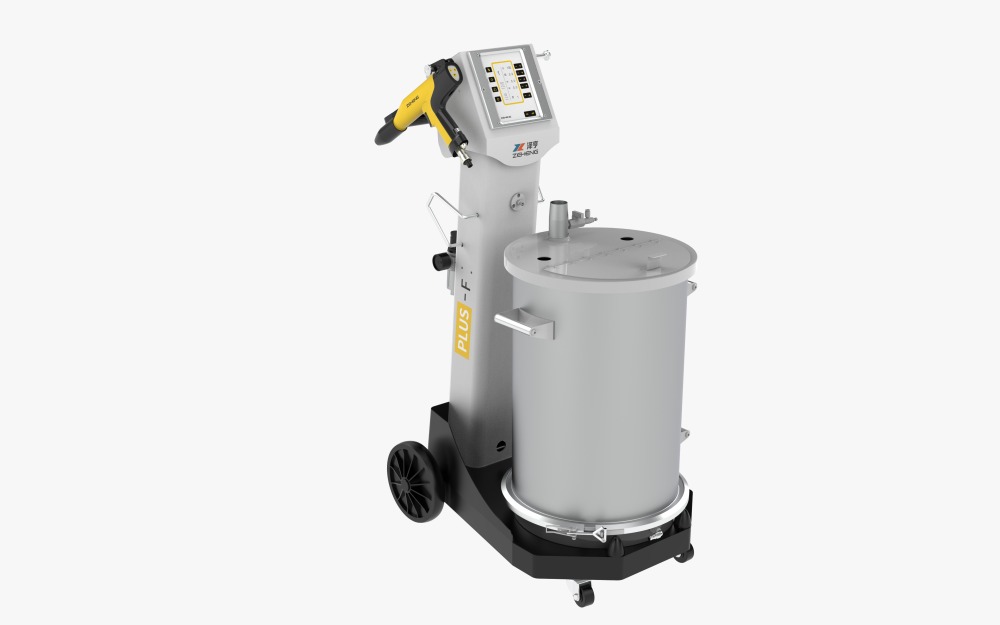

(Plus - F) Manual Powder Coating Gun Pkg

(Plus - F) Manual Powder Coating Gun Pkg Price And Quantity

• Minimum Order Quantity 1 Unit

(Plus - F) Manual Powder Coating Gun Pkg Product Specifications

• Feature Lightweight, ergonomic design, high transfer efficiency, easy to clean
• Material Engineering Plastics, Stainless Steel Nozzle
• Power Source Electric (Control Unit)
• Voltage 220 V AC (Control Unit)
• Automatic No
• Coating Head Interchangeable Nozzles
• Weight (kg) Approx. 550 g (Gun Only)
• Dimension (L*W*H) Control Unit: Approx. 400 x 250 x 230 mm
• Type Manual Electrostatic Spray Gun
• Computerized No
• Product Type Manual Powder Coating Gun Package
• Control System Microprocessor based
• Machine Speed Operator dependent
• Color White and Blue (Gun)
• Coating Width Operator Dependent
• Power Requirement 220 V AC, 50 Hz
• Feeding Type Manual Powder Feed
• General Use Manual powder coating of metal and non-metal surfaces
• Coating Transfer Method Corona Electrostatic
• Coating Material Thermoplastic and Thermoset Powder
• Drive Type Manual
• Power Consumption Approximately 40 W
• Coating Type Electrostatic Powder Coating
• Max. Coating Area Up to 15 m2/hr (with optimal settings)
• Coating Speed Adjustable, up to 15 m2/hr (typical)
• Coating Format Manual Spray Application

• Powder Output Adjustable 0-600 g/min
• Input Air Pressure Minimum 6 bar required
• Cable Length 5 meters (gun to control unit)
• Powder Hopper Capacity Approx. 10 kg (depends on package)
• Spraying Distance Optimal 150-250 mm from object
• Safety Certifications CE Certified
• Recommended Particle Size 10-100 microns
• Air Consumption Max 13 m3/h
• Operating Temperature Range 5C to 40C
• Electrostatic Voltage Range Up to 100 kV (adjustable)
• Construction Impact-resistant polymer housing for gun
